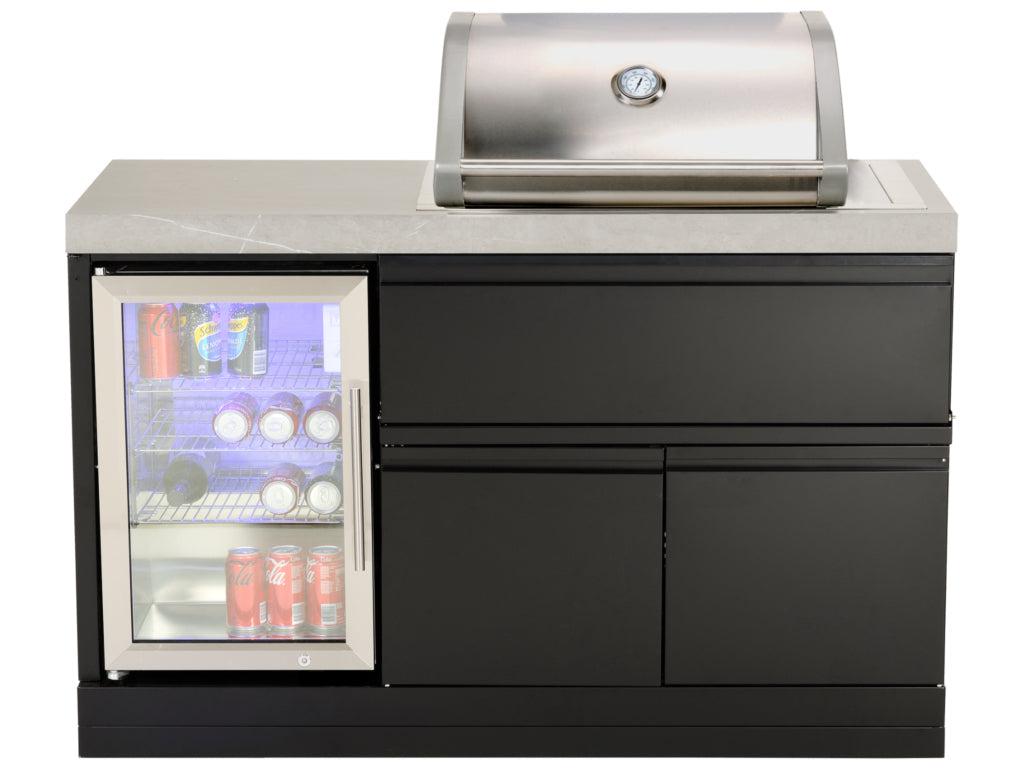

The new CROSSRAY Electric BBQ Mini Outdoor Kitchen elevates electric outdoor cooking to a whole new level – perfect for your balcony, courtyard or al fresco area. Add a real touch of class with this unique, world class fully-equipped kitchen, that gives you everything you need to prepare the perfect meal for family and friends.
Includes the new high hood CROSSRAY Electric BBQ flush mounted, with 2 x 750W carbon-fibre infrared elements that provide instant performance
Zinc-coated & powder-coated black cabinet provides full corrosion protection. Includes a top pull-down shelf and double-skin doors below
Complete compact outdoor kitchen featuring a flush-mounted electric BBQ, single fridge, with one-piece sintered stone benchtop and under-bench storage
Castor wheels for easy manoeuvrability. Front kickboard included as standard
Perfect for smaller backyards & al fresco areas, townhouses, balconies & apartments or where gas use is not preferred or allowed
Easy DIY Installation. All appliances are suitable to plug into a standard 10A GPO
What's in the Box
CROSSRAY Electric BBQ Mini Outdoor Kitchen
Quick start guide
Output: 1500W total output (2 x 750W)
Width: 138.5 cm
Depth: 61 cm
Height: 111 cm (with BBQ)
Weight (One Fridge): 113.2 kg
Weight (No Fridge): 84.5 kg
Cooking area: 1436 cm²
Power: 3-pin plug for standard 10A GPO (240V)
Tray: Bottom mounted oil collection tray
Fridge: 63L capacity, with temperature control, triple glazed lockable door & blue LED back-lighting
Cabinet: Zinc-coated & powder-coated mild steel with double-skinned doors & magnetic closure
Benchtop: Sintered stone with 60 mm edge
Fridge: 304 stainless steel, triple glazed door
BBQ casing, lid & heat reflector: 430 stainless steel
Grill & hotplate: Ceramic-coated cast iron
Grill bowl & drain tray: Powder-coated steel
Cooking elements: Carbon fibre, glass encased
BBQ hood: 430 stainless steel outer wall & aluminium plated inner wall
Control knob: Aluminium
Lid handle: Black bakelite
One Fridge: TCE15F-MK1
No Fridge: TCE15F-MK2
EESS Equipment Number
This product comes with 2-year warranty provided by the product manufacturer. Please see the product box and literature for details. Rights under the product manufacturer’s warranty are in addition to any rights you have under Australian consumer law.
View installation manual ›
